Specifications

Product code L22UGS-5HaxD2HaxD-15S

CPU Dual-Core IPQ-5010 800 MHz

CPU architecture ARM

Size of RAM 256 MB

Storage 128 MB, NAND

Number of 1G Ethernet ports 1

Number of 1G SFP ports 1 (2.5G supported)

USB port 1 USB 2.0 port type A

Wireless interface model IPQ-5010 (2.4 GHz), QCN-6102 (5 GHz)

Wireless 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain

Antenna gain 2.4 GHz - 12 dBi, 5 GHz - 15 dBi

Dimensions 349 x 140 x 82 mm

Operating system RouterOS v7, License level 4

Operating temperature -40°C to +70°C

Number of DC inputs 2 (PoE-In, DC jack)

PoE-In input Voltage 18-28 V

DC jack input Voltage 12-28 V

Max USB current 1.5 A

Power adapter nominal voltage 24 V

Power adapter nominal current 1.2 A

PoE-In Passive PoE

Max power consumption (without attachments) 11 W

Max power consumption 21 W

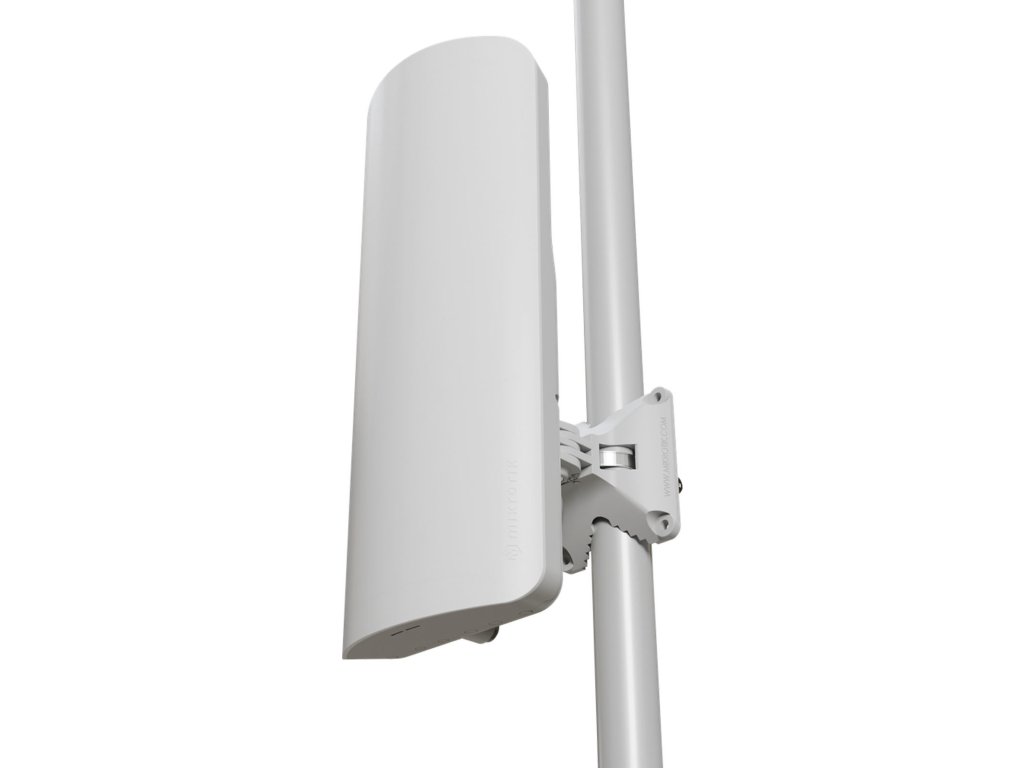

mANTBox ax 15s sector antenna
