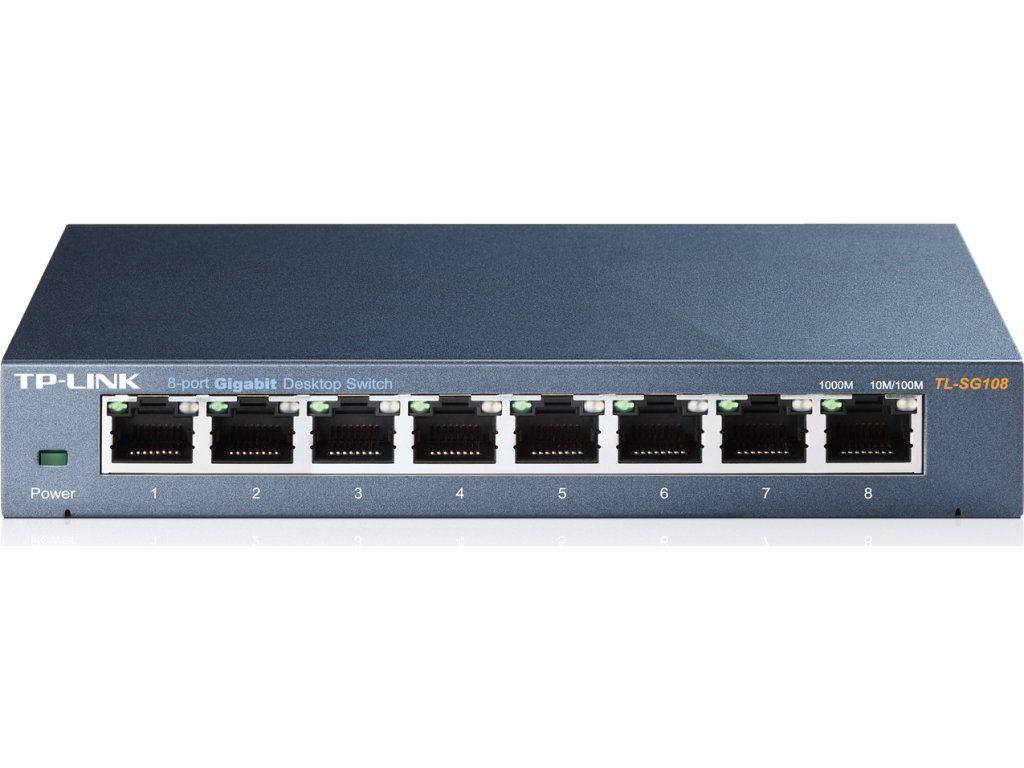

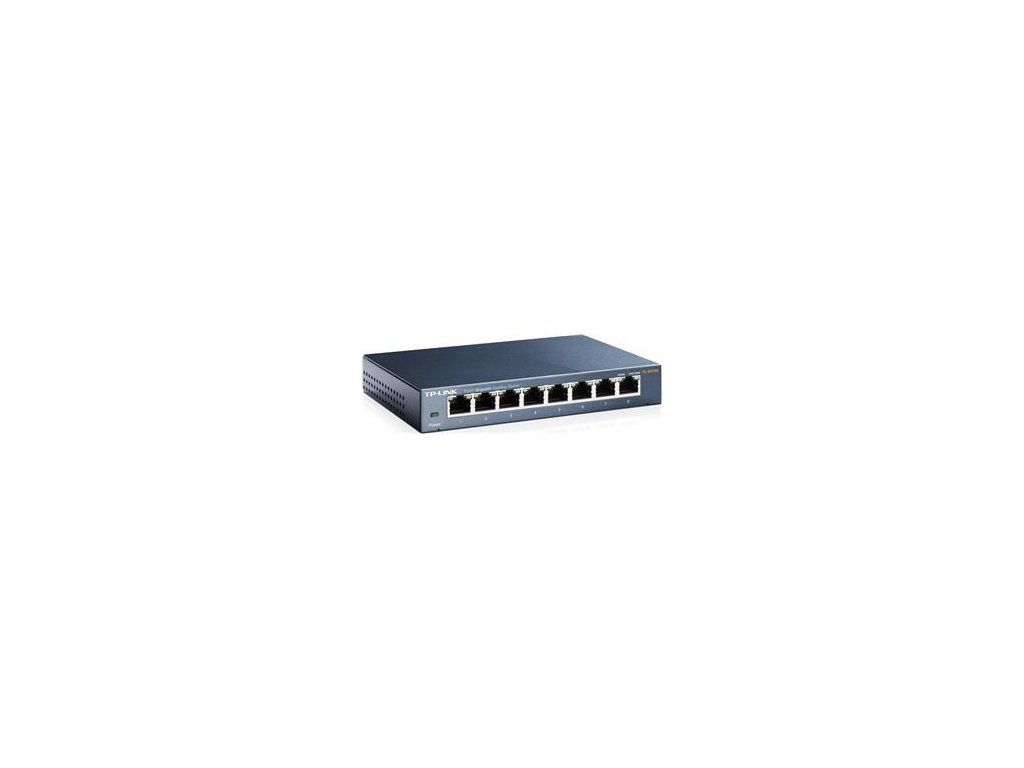

TP-Link TL-SG108 8x Gigabit Desktop Switch
Kód: 438011Podrobný popis
8-Port 10/100/1000Mbps Desktop Switch
OVERVIEW
The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 72% of the power consumption, making it an eco-friendly solution for your home or office network.
FEATURES
• Innovative energy-efficient technology saves power up to 72%
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Steel design, desktop or wall-mounting design
• Supports QoS (IEEE 802.1p) function
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• 9K Jumbo frame improves performance of large data transfers
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
• Fanless design ensures quiet operation
• Plug and Play design simplifies installation
HARDWARE FEATURES
Standards and Protocols
• IEEE 802.3/802.3u/ 802.3ab/ 802.3x
• CSMA/CD
Interface
• 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
External Power Supply
• 100-240VAC, 50/60Hz
Dimensions (W X D X H)
• 158 x 101 x 25 mm
Fan Quantity
• Fanless
LED Indicator
• System Power
• Link, Speed and activity indicators per port built into each RJ-45 port
SOFTWARE FEATURES
Advanced Features
• Green Technology,saving power up to 72%
• 802.3X Flow Control
• Supports QoS (IEEE802.1P)
Transfer Method
• Store and Forward
OTHERS
Certification
• CE, FCC ,RoHS
Package Contents
• 8-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• User Guide
System Requirements
• Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, Mac® OS, NetWare®, UNIX® or Linux.
Související odkazy
Související dokumenty
Dodatočné parametre
| Kategória: | Switche |
|---|---|
| Záruka: | 60 |
| Hmotnosť: | 0.53 kg |
| Číslo výrobku: | TL-SG108 |
| Délka: | 9.8 cm |
| EAN: | 6935364021153 |
| Funkce: | QoS (Quality of service) |
| Hmotnost: | 0.53 kg |
| Management: | Nie |
| Maximálny počet portov: | 8 |
| Počet portů LAN: | 8 |
| Prevedenie: | Desktop |
| Přenosová rychlost LAN (Mb/s): | 1000 |
| Šířka: | 19.1 cm |
| Technológia: | Gigabit Ethernet 1000Mbps |
| Ventilátor: | Ne |
| Výška: | 13.3 cm |
| Záruka: | 60 Měsíc(ů) |
