Podrobný popis

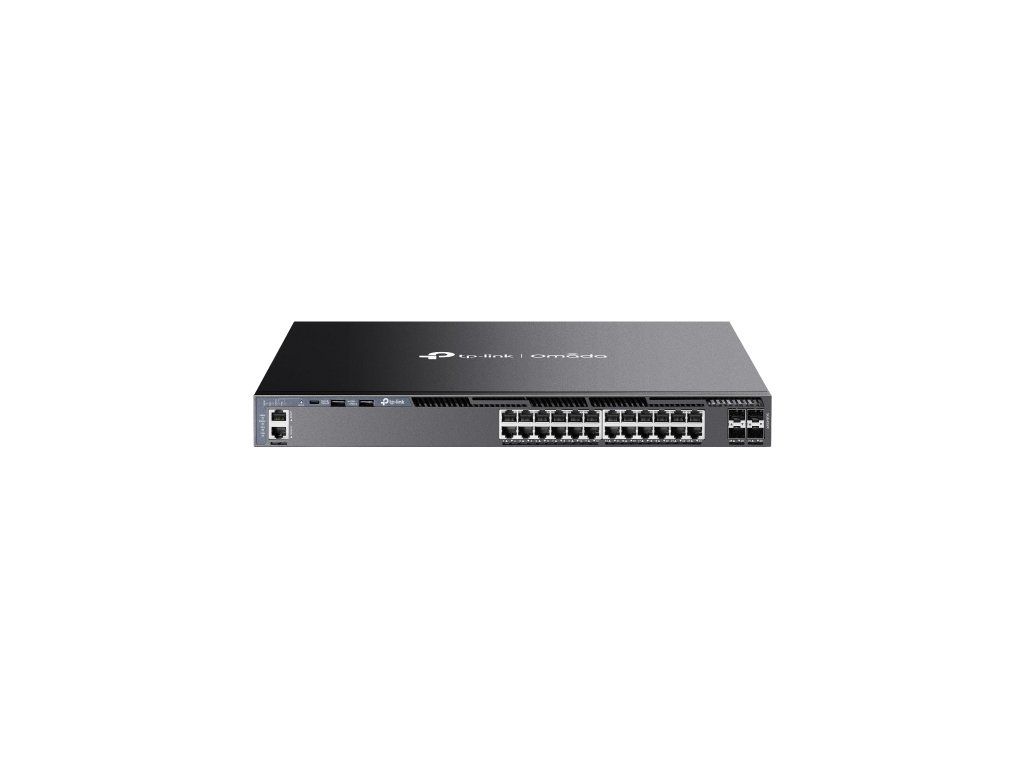

SG6428X

Omada 24portový gigabitový stohovatelný spravovaný switch L3 se 4 sloty 10G

Funkce

*24× gigabitových portů RJ45 a 4× 10 Gb/s slotů SFP+

*Přepínací kapacita 128 Gb/s na jednotku

*Fyzické stohování pro integrovanou redundanci a výkonnost

*Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay

*Strategie zabezpečení: ACL, zabezpečení portů, DoS Defend, 802.1X

*Vysoká dostupnost díky dvěma interním pevným zdrojům napájení, VRRP a ERPS

*Centralizovaná správa cloudu prostřednictvím řadiče Omada SDN

*Samostatná správa přes web, CLI, SNMP a RMON

Specifikace

Hardware

Interface

*24× 10/100/1000 Mbps RJ45 Ports

*4× 10G SFP+ Slots

*2× USB 2.0 Ports

*1× RJ45 Console Port

*1× USB Type-C Console Port

*1× RJ45 Management Port

Fan Quantity

*Four Internal Fixed Fans

Power Supply

*Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)

Max. Power Consumption

*28.4 W (220 V/50 Hz)

Dimensions ( W x D x H )

*440 × 380 × 44 mm

Mounting

*Rack Mountable

Max Heat Dissipation

*96.91 BTU/hr (220 V/50 Hz)

Výkon

Switching Capacity

*128 Gbps per Unit

Stacking

*Stacking Number: 8

*Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)

*Stack Bandwidth: Up to 80 Gbps (4 stack ports)

Packet Forwarding Rate

*95.2 Mpps

MAC Address Table

*32 K

Packet Buffer Memory

*3 MB

Jumbo Frame

*9 KB

Software

Quality of Service

-Class of Service

*8 Queues of Priority

*Port Priority

*IEEE 802.1p Priority

*DSCP Priority

*Queue Min-Bandwidth

*Schedule Mode (SP, WRR, SP+WRR)

-Bandwidth Control

*Rate Limit

*Storm Control

-Voice VLAN

-User-Defined OUI

-Smoother Performance

-Action for Flows

*QoS remark (802.1P Remark, DSCP Remark)

L3 Features

-IP Interfaces:

*IPv4: Max 256, IPv6: Max 256

-Static Routing

*Max 1,024, IPv6: Max 512

-Host Route Table: Max 6,100 entries

-RIP: Version v1/v2, Max 8,190

-OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097

-VRRP: Version v2/v3, Max 64 groups

-ECMP: 256 entries, max 32 ECMP Nexthops per Destination

-Static ARP: 512 static entries

-Dynamic ARP: 7,680 dynamic entries

-Proxy ARP

-DHCP Server:

*Max 8K IP Pools

*Max 1,000 Manual Binding Entries

-DHCP Relay:

*Relayed Interface

*Relayed VLAN

L2 and L2+ Features

-Link Aggregation

-Spanning Tree Protocol

-Port-based and VLAN-based Loopback Detection

-802.3x Flow Control

-Supports 2,048 IGMP groups

-ERPS

-Mirroring

-RSPAN

-MAC Address Table

-PIM-DM (IPv4)

-Multicast

*IGMP Snooping

*MLD Snooping

*L2 Multicast Table

*Fast Leave

*Multicast VLAN Registration (MVR)

*Static Multicast IP

*Multicast Filtering

Advanced Features

-Automatic Device Discovery

-Batch Configuration

-Batch Firmware Upgrading

-Intelligent Network Monitoring

-Abnormal Event Warnings

-Unified Configuration

-Reboot Schedule

ISP Features

-802.3ah Ethernet Link OAM

-L2PT (Layer 2 Protocol Tunneling)

-Device Link Detect Protocol (DLDP)

-DDM

-sFlow

-PPPoE ID Insertion

VLAN

-Max 4K VLAN Group (802.1q VLAN)

-802.1Q Tagged VLAN

-MAC VLAN Entries: 200

-Multicast VLAN

-Management VLAN

-VLAN VPN (QinQ): Max 256 entries

-GVRP

-Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries

-VLAN VPN

-Voice VLAN

-Private VLAN

Security

-Port Isolation

-CPU-Deffend

-ARP Inspection (Dynamic ARP Inspection)

-DoS Defend

-IP-MAC-Port Binding

*1,024 Entries

*DHCP Snooping

*ARP Inspection

*IPv4 Source Guard

-IPv6-MAC

*Port Binding

*1,024 Entries

*DHCPv6 Snooping

*ND Detection

*ND Snooping

*IPv6 Source Guard

-DHCP Filter

-Static/Dynamic Port Security

*Up to 64 MAC addresses per port

-Broadcast/Multicast/Unknown-unicast Storm Control

*kbps/ratio control mode

-802.1X

*Port base authentication

*Mac base authentication

*VLAN Assignment

*MAB

*Guest VLAN

*RADIUS authentication and accountability support

-AAA (including TACACS+)

-Secure web management through HTTPS with SSLv3/TLS 1.2

-Secure Command Line Interface (CLI) management with SSHv2

-IP/Port/MAC-based access control

Management

Management Features

-Web-based GUI

-Command Line Interface (CLI) through console port, telnet

-SNMPv1/v2c/v3

*Trap/Inform

*RMON (1, 2, 3, 9 groups)

-SDM Template

-DHCP/BOOTP Client

-802.1ab LLDP/LLDP-MED

-DHCP Auto Install

-Dual Image, Dual Configuration

-CPU Monitoring

-Cable Diagnostics

-Password Recovery

-SNTP

-System Log

-EEE
