Popis produktu

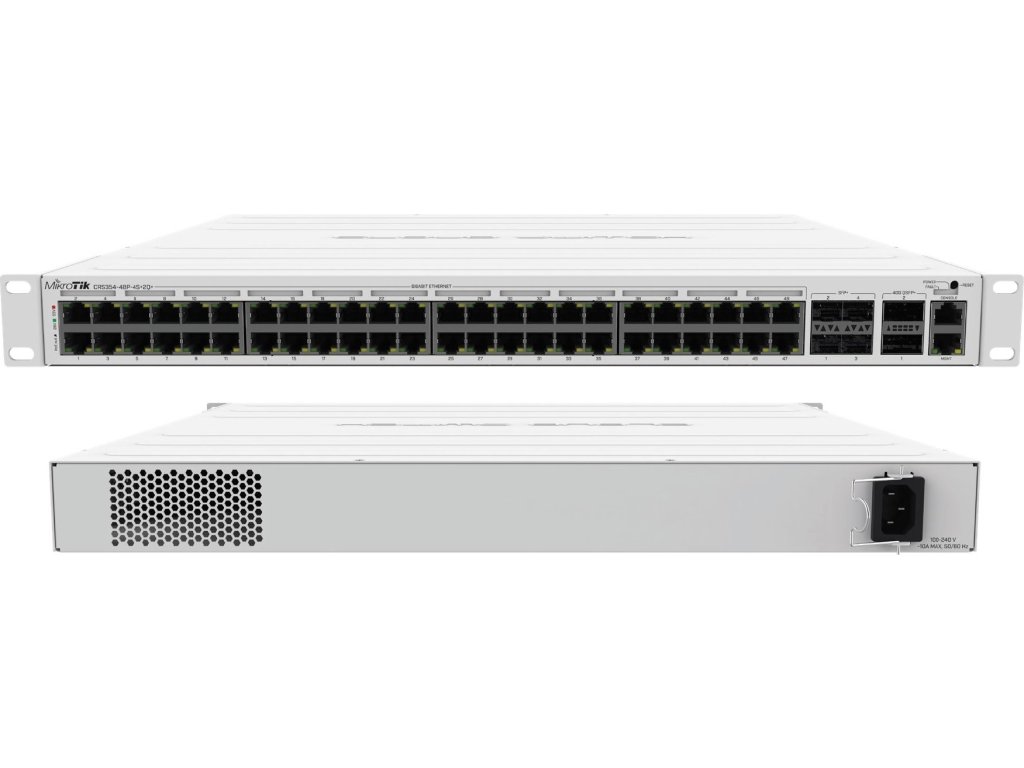

Cloud Router Switch PoE CRS354-48P-4S+2Q+RM

Power all your devices while having the strongest performance – this 48 port PoE+ switch will rock any setup, including 40 Gbps devices!

If you are looking for a single switch that will put your network setup ahead of the curve and power

all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and

adaptable rackmount solution for managing networks in the most demanding environments. Unlike

many other switches out there, our products are made with the system administrator in mind.

High-end performance with PoE-out for the masses: more 10G ports and even 40G ports, because speed matters

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+

ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports

offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2

“PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups.

We have included a mighty power supply that can provide 750 W of power – this switch can handle

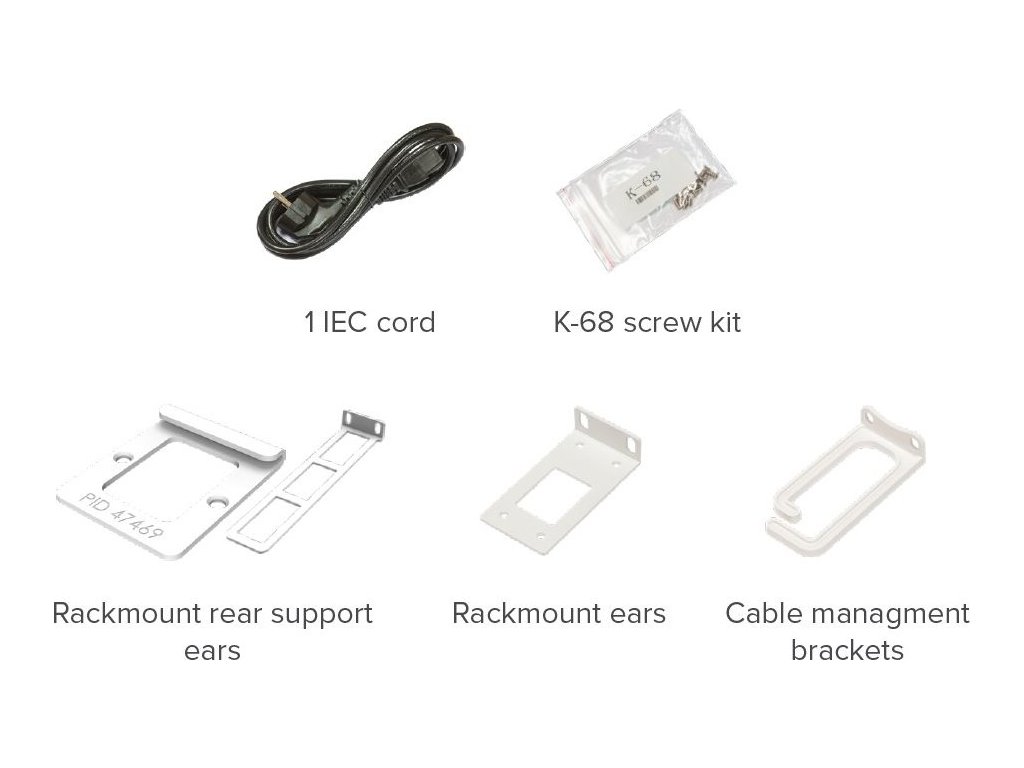

a lot. And there is a special bracket for easy cable management.

The 48 port champion you’ve been waiting for – this is the bargain of the decade! Now with PoE-out!

CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will

make the perfect addition to a professional setup.

The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate

reaches 235 Mpps

Technické specifikace:

Provedení: Rackmount

Počet "U" pozic: 1

Ventilátory: (3) 40 x 40 mm

Šasi: Kovové

Tlačítka: Reset

Provozní teplota [°C]: -20 až 60

Hloubka [mm]: 382

Šířka [mm]: 443

Výška [mm]: 44

RAM [MB]: 64

CPU: QCA9531

Frekvence CPU [MHz]: 650

Počet CPU jader: 1

Velikost interního uložiště [MB]: 16

Management LAN: (1) 10/100Mbps

Sériový port: RJ45

Rychlosti LAN: (48) 10/100/1000Mbps

Gigabit LAN: Ano

Rychlosti SFP/SFP+/QSFP+: (4) 10Gbps + (2) 40Gbps

Redundantní napájení: Ano

Typ napájení: Ze sítě (230V)

Podporované PoE-Out standardy: 802.3af, 802.3at, Pasivní 24V, Pasivní 48V

PoE budget [W]: 750

Max. spotřeba energie [W]: 800

Napájení přes konektor/svorkovnici: 230V AC

Rychlost předávání paketů [Mpps]: 235

Rychlost přepínání [Gbps]: 336

Web management: Ano

Funkce: VLAN, QoS, L3

Operační systém: RouterOS - L5

Podpora IPv6: Ano

Výchozí IP adresa: 192.168.88.1

Výchozí jméno a heslo: admin / -
