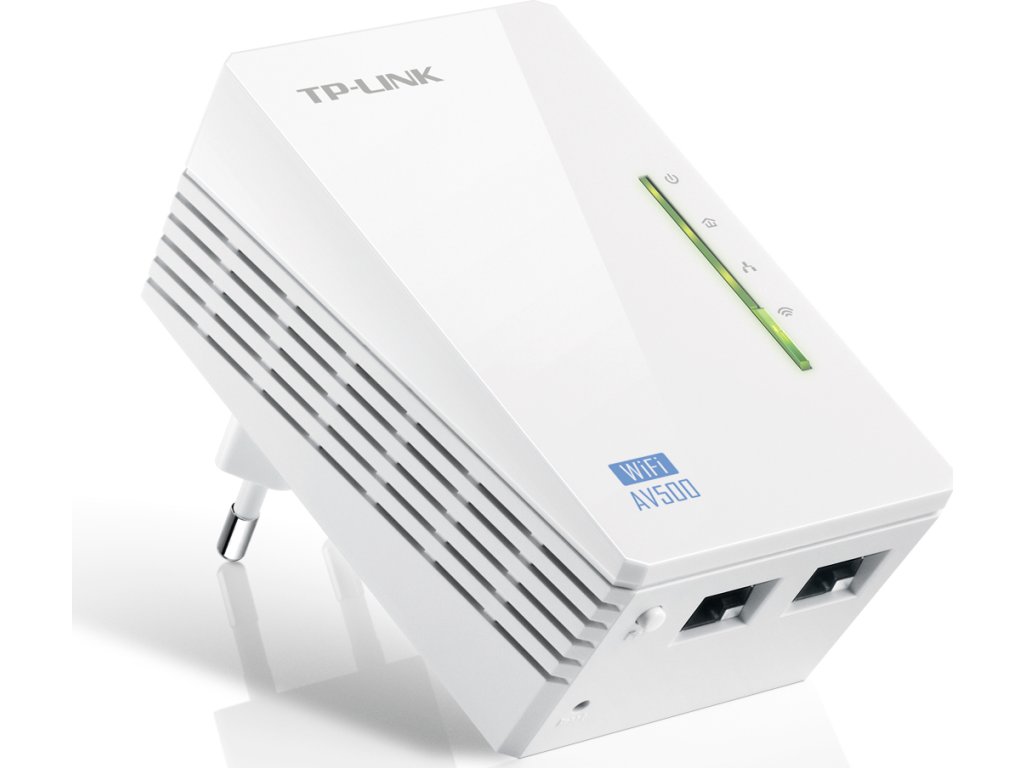

TP-Link TL-WPA4220 N300 Powerline Extender

OVERVIEW

* One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network

* HomePlug AV standard providing up to 500Mbps high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming

* Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office

SPECIFICATIONS

HARDWARE FEATURES

Standards and Protocols

* HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n

Interface

* 2*10/100Mbps Ethernet Port

Plug Type

* EU, UK, US, AR

Button

* Pair, Reset, Wi-Fi/Wi-Fi Clone

LED Indicator

* PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone

Dimensions ( W x D x H )

* 94×54×40mm

Power Consumption

* Maximum: 5.308W (220V/50Hz)

* Typical: 5.086W (220V/50Hz)

* Standby: 4.170W (220V/50Hz)

Range

* 300 Meters over electrical circuit

SOFTWARE FEATURES

Modulation Technology

* OFDM (PLC)

Encryption

* Powerline Security:

* 128-bit AES

* Wireless Security:

* WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption

OTHERS

Certification

* CE, FCC, RoHS

Package Contents

* Powerline Ethernet Adapter TL-WPA4220

* 6.5 ft. (2 m) Ethernet cable (RJ45)

* Resource CD

* Quick Installation Guide

System Requirements

* Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux

Environment

* Operating Temperature: 0°C~40°C

* Storage Temperature: -40°C~70°C

* Operating Humidity: 10%~90% non-condensing

* Storage Humidity: 5%~90% non-condensing
