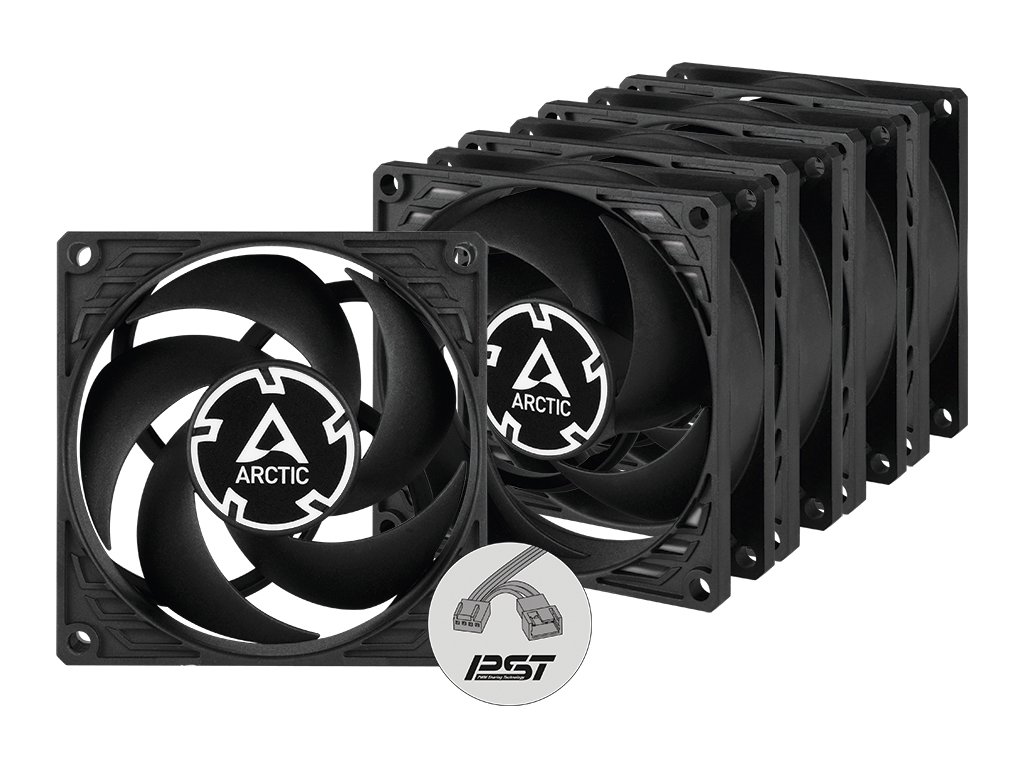

P8 PWM PST - Pressure-optimised 80 mm Fan with PWM PST - Pack of 5pcs

OPTIMISED FOR STATIC PRESSURE

During the development of the new P8 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST is particularly suitable for use on heatsinks and radiators.

MORE EFFICIENT TECHNOLOGY

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P8 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

MAXIMUM QUIETNESS, MINIMUM VIBRATION

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

EXTENDED LIFE SPAN

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.

200 TO 3000 RPM REGULATED VIA PWM PST

Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

HIGH QUALITY BEARING

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

TWO WAY INSTALLATION

- Push warm air out of the case

- Pull cool air into your case

TECHNICAL SPECIFICATIONS

General data

Performance

Fan Speed: 200 - 3000 rpm

Airflow: 23.4 CFM / 40.3 m3/h

Static Pressure: 1 (mm/H2O)

Noise Level: 0.3 Sone

Fan

Fan Frame: Standard

Controll Typ: PST

Connector: 4-Pin Connector + 4 Pin Socket

Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:

Typical Voltage: 12 V DC

Starting Voltage: 0 V

Current: 0.09 A

Cable Lenght: 400 mm

Size & Weight

Lenght: 80 mm

Width: 80 mm

Height: 25 mm

Weight: 81 g

Packaging

Width: 82.5 mm

Height: 82.5 mm

Length: 26 mm

Weight: 0.1 kg
