Podrobný popis

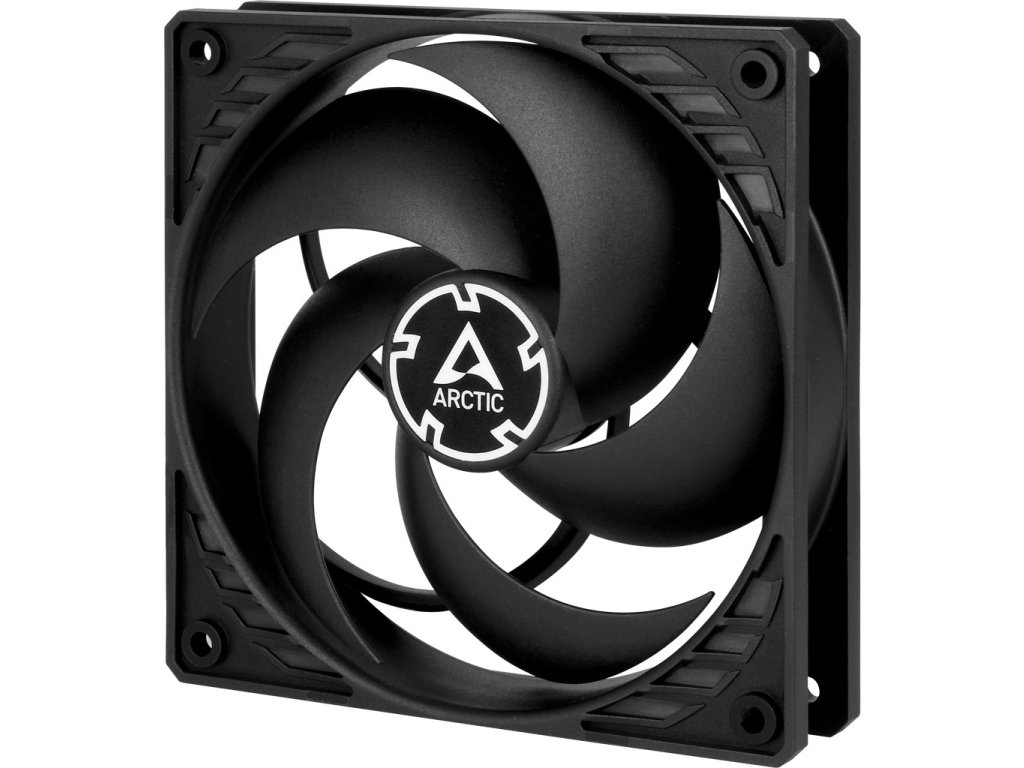

Nová série ventilátorů ARCTIC P optmalizovaná pro statický tlak. Tento ARCTIC P12 PWM PST je ventilátor 120x120x25mms otáčkami 200 - 1 800 RPM (řízenými PWM) s 0 dB fan módem a vzduchovým transferem 56.3 CFM / 95.65 m3/h. Hlučnost: 0.3 Sone (@ 1 800 RPM)

Optimised for Static Pressure - During the development of the new P12 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST is particularly suitable for use on heatsinks and radiators.

More Efficient Technology - The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

Maximum Quietness, Minimum Vibration - Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.

Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span - A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.

200 to 1800 RPM - regulated via PWM PST. Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

0 dB Mode - The P12 PWM PST is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise.

High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Performance

Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM

Air Flow: 56.3 CFM / 95.65 m3/h

Noise Level: 0.3 Sone (@ 1 800 RPM)

Electrical Characteristics

Typical Voltage: + 12 V DC

Start-up Voltage: 3.9 V DC

Cable Length: 400 mm

Sub PST Cable Length: 50 mm

Voltage Current 12 V DC (Norminal) 0.08 A

Connection

Motherboard: + 12 V DC

PWM control signal: 4-pin connector + 4-pin socket
