Podrobný popis

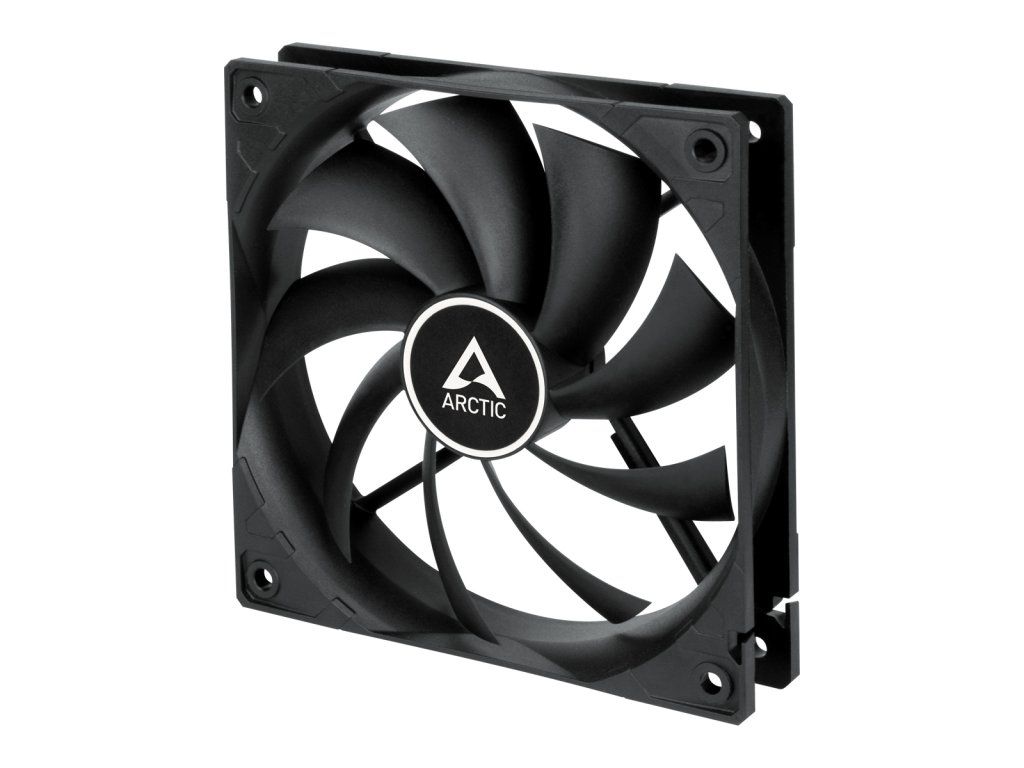

F12

120 mm Standard Case Fan

LONG SERVICE LIFE

The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION

The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

TWO WAY INSTALLATION

Blow warm air out of the case

Draw cool air into your case

General data

Performance

Fan Speed: 1350 rpm

Airflow: 53 CFM/ 90.1 m3/h

Static Pressure: 1.00 mm H2O

Noise Level: 0.3 Sone

Operating Ambient Temperature: 0 - 40 °C

Fan

Fan Frame: Standard

Control Type: Fixed Speed

Connector: 3-Pin-Connector

Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics:

Typical Voltage: 12 V DC

Starting Voltage: 2.7 V

Current/ Voltage: 0.12 A / 12 V

Cable Lenght: 400 mm

Size & Weight

Lenght: 120 mm

Width: 120 mm

Height: 25 mm

Weight: 107 g

Packaging

Width: 123 mm

Height: 123 mm

Length: 27 mm

Weight: 0.13 kg
