Podrobný popis

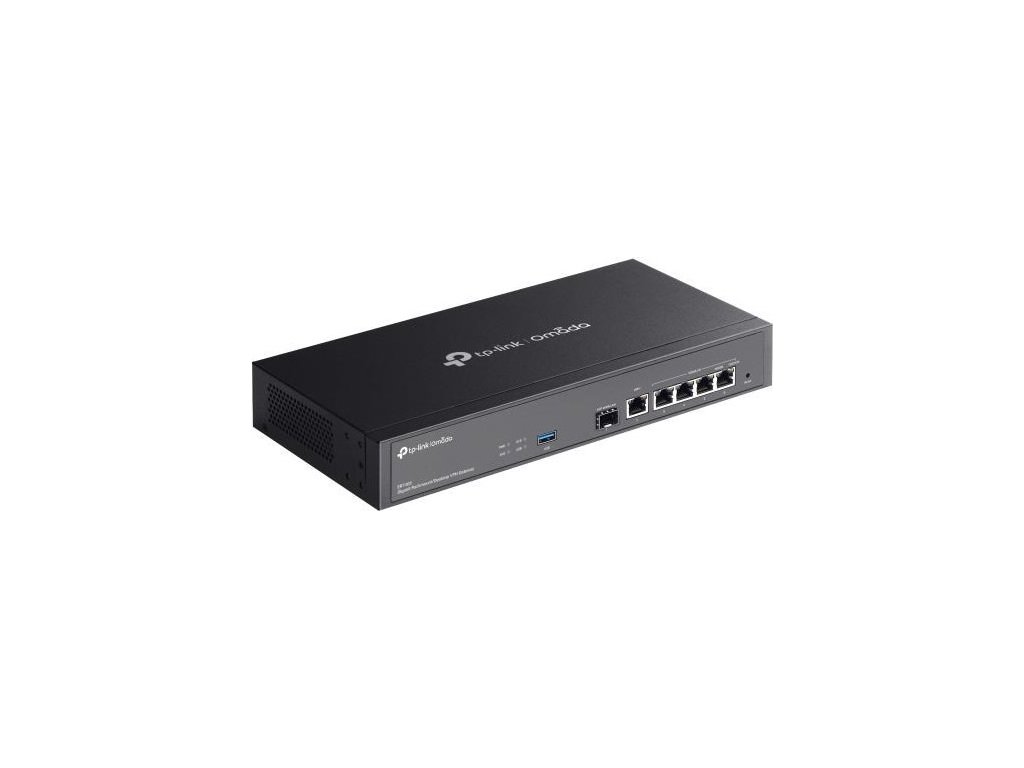

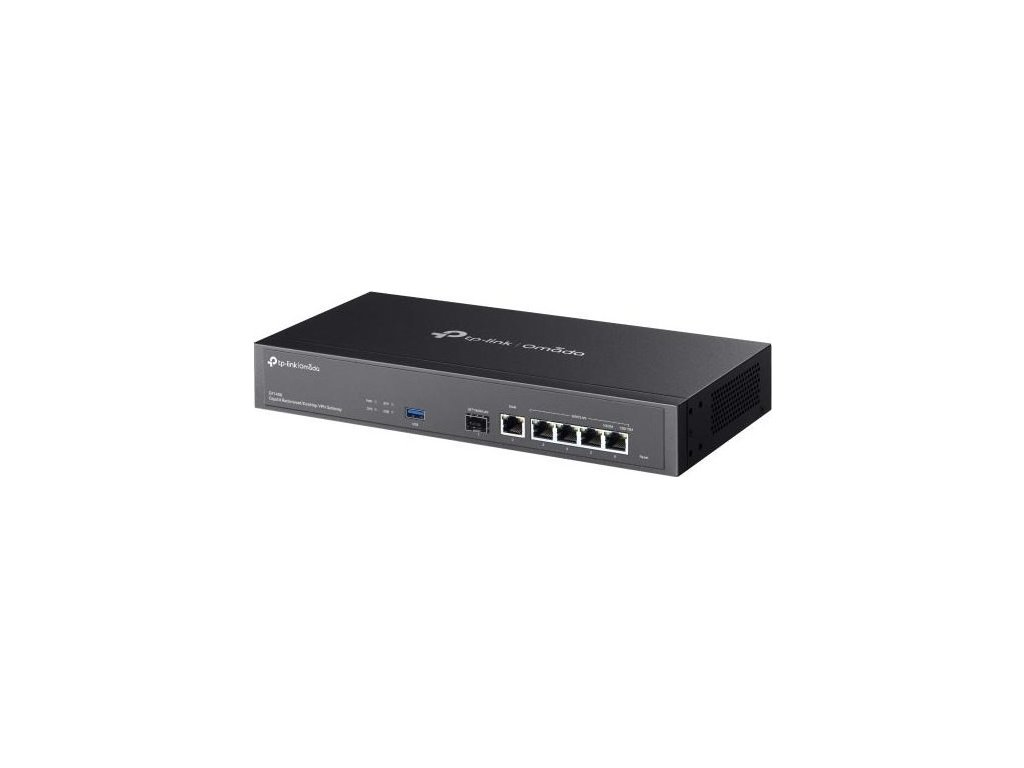

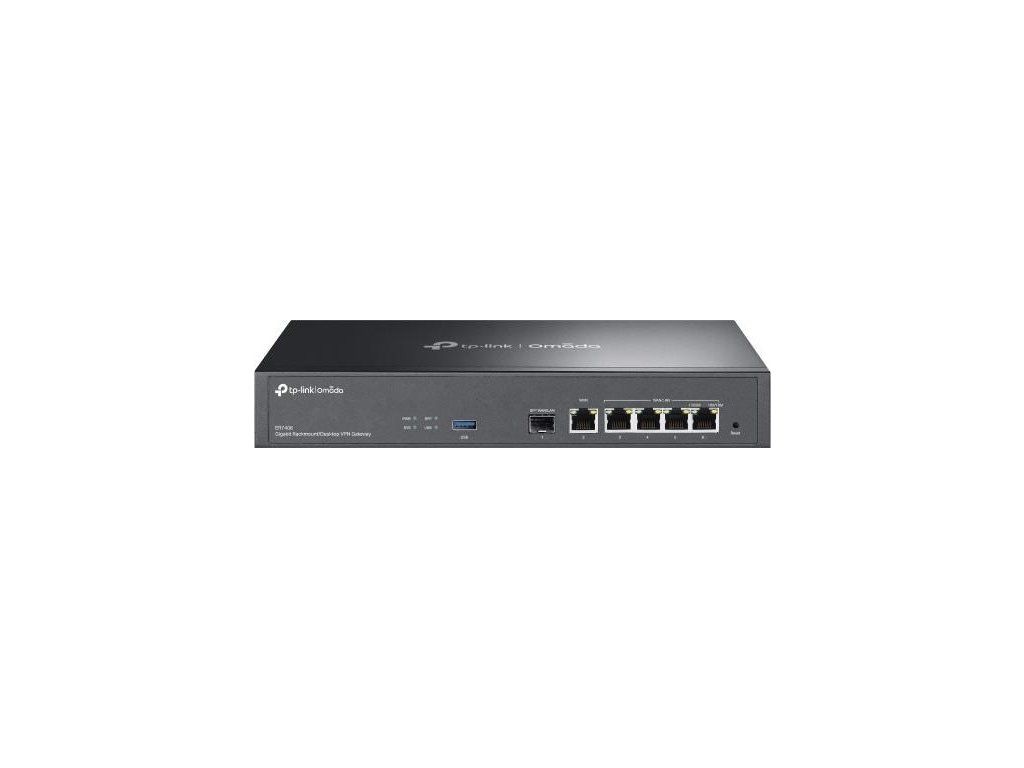

ER7406

Omada Gigabitová gateway VPN pro montáž do racku / na stůl

Funkce

*1× gigabitový SFP WAN/LAN port

*5× gigabitových RJ45 portů (1× WAN, 4× WAN/LAN)

*1× USB 3.0 port (podporuje USB úložiště a LTE zálohování s LTE donglem)

*Vyvažování zátěže na až 5 WAN portech zvyšuje využití více-linek širokopásmového připojení

*Vysoce zabezpečená SSL/IPSec/GRE§/WireGuard/PPTP/L2TP VPN a OpenVPN

*Centralizovaná správa v cloudu přes web nebo aplikaci Omada

*Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro zvýšenou bezpečnost

*Montáž do racku/stolní provedení

Specifikace

Zabezpečení

Access Control Source/Destination IP Based Access Control

Filtering

*WEB Group Filtering

*URL Filtering

*Web Security

ARP Inspection

*Sending GARP Packets

*ARP Scanning

*IP-MAC Binding

Attack Defense

*TCP/UDP/ICMP Flood Defense

*Block TCP Scan (Stealth FIN/Xmas/Null)

*Block Ping from WAN

Hardware

Standards and Protocols

*IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q

*TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

Interface

*1 Gigabit SFP WAN/LAN Port

*1 Gigabit WAN Port

*4 Gigabit LAN/WAN Ports

*1 USB 3.0 Port (supports USB LTE dongle and USB storage)

Network Media

*10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

*100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

*1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Fan Quantity

*Fanless

Button

*Reset Button

Power Supply

*100-240VAC, 50/60Hz

Flash

*128 MB NAND

DRAM

*512 MB DDR4

LED

*PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)

Dimensions ( W x D x H )

*294 × 140 × 44 mm

Protection

*4 kV surge protection

Enclosure

*Steel

Mounting

*Desktop

*Rackmountable

Max Power Consumption

*7.5 W (with USB 3.0 connected)

*4.5 W (without USB 3.0 connected)

Výkon

IPS Throughput

*TCP: 229 Mbps;

*UDP: 188 Mbps

DPI Throughput

*TCP: 933 Mbps;

*UDP: 927 Mbps

GRE

*Unencrypted: 611.9 Mbps

*Encrypted: 325.0 Mbps

WireGuard VPN

*341.3 Mbps

Concurrent Session

*150,000

New Sessions /Second

*5,300

NAT (Static IP)

*945.3 Mbps / 940.5 Mbps

NAT(DHCP)

*939.6 Mbps / 940.9 Mbps

NAT(PPPoE)

*943.6 Mbps / 940.9 Mbps

NAT (L2TP)

*880.1 Mbps / 859.0 Mbps

NAT (PPTP)

*855.0 Mbps / 907.2 Mbps

IPsec VPN Throughput

*ESP-SHA1-AES256: 617.1 Mbps

*ESP-SHA256-AES256: 592.8 Mbps

*ESP-SHA384-AES256: 592.4 Mbps

*ESP-SHA512-AES256: 604.5 Mbps

OpenVPN

*139.1 Mbps

L2TP VPN Throughput

*Unencrypted: 977.4 Mbps

*Encrypted: 334.6 Mbps

PPTP VPN Throughput

*Unencrypted: 1064.1 Mbps

*Encrypted: 206.8 Mbps

SSL VPN Throughput

*131.6 Mbps

66 Byte Packet forwarding rate

*1,453,489 pps / 1,453,488 pps

1,518 Byte Packet forwarding rate

*81,279 pps / 81,275 pps

Základní funkce

WAN Connection Type, MAC Clone, DHCP, IpV6, VLAN, IPTV

Rožšířené funkce

Advanced Routing, Bandwidth Control, Load Balance, NAT, Session Limit

VPN

GRE

*Yes(Only in Standalone Mode)

SSL VPN

*50 Tunnels

IPsec VPN

*100 IPSec VPN Tunnels

PPTP VPN

*50 Tunnels

L2TP VPN

*50 Tunnels

OpenVPN

*55 OpenVPN Tunnels

Autentizace

Web Authentication

*No Authentication

*Simple Password

*Hotspot (Local User /Voucher*/ SMS/Radius*)

*External Radius Server

*External Portal Sever

*LDAP

Management

Omada App

*Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

*Omada Cloud-Based Controller

*Omada Hardware Controller

*Omada Software Controller

Cloud Access

*Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Service

*Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Zero-Touch Provisioning

*Yes. Requires the use of Omada Cloud-Based Controller.
