Podrobný popis

Wireless

Standard

IEEE802.11 be/ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4 GHz: 1376 Mbps

5 GHz: 8646 Mbps

6 GHz: 11530 Mbps

Frequency band

2.4 GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz

5 GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

6 GHz:

USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz

European (ETSI): 5.925 to 6.425 GHz

Bandwidth

20-, 40- ,80-, 160- , 240- and 320-MHz

Conducted typical transmit output power*1

US (2.4GHz/5GHz) or +/6GHz):

29/28/23dBm

EU (2.4GHz/5GHz) or +/6GHz):

19/25/22dBm

RF Design

Antenna type

Smart Antenna

Antenna gain

2.4 GHz:

3dBi, 4x4:4SS

5 GHz:

5dBi, 4x4:4SS

6 GHz:

5dBi, 4x4:4SS

Minimum receive sensitivity

Min. Rx sensitivity up to -104 dBm

WLAN Feature

Band steering

Yes

WDS/Mesh*2

Yes

Fast roaming

Pre-authentication, PMK caching and 802.11r/k/v

DCS

Yes

Load balancing

Yes

Advanced cellular coexistence

Yes

Security

Encryption

WEP

WPA

WPA2-PSK

WPA3

Authentication

IEEE 802.1X

RADIUS authentication

Access management

L2-isolation

MAC filtering

Rogue AP detection

Networking

IPv6

Yes

VLANs

Yes

WMM

Yes

U-APSD

Yes

Management

Operating mode

Nebula cloud managed

Controller-managed

Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations:

IP configuration

IP renew

Device reboot

Device locating

Web GUI access

Firmware upgrade

Password configuration

Web UI/CLI

Yes

SNMP

Yes

Physical Specifications

Item

Dimensions (WxDxH)(mm/in.)

310 x 178 x 56 / 12.205 x 7.01 x 2.205

Weight (g/lb.)

1412/3.11

Packing

Dimensions (WxDxH)(mm/in.)

377 x 231 x 93 / 14.84 x 9.09 x 3.66

Weight (g/lb.)

2040/4.497

Included accessories

Mount plate

Mounting screws

MTBF (hr)

242,749

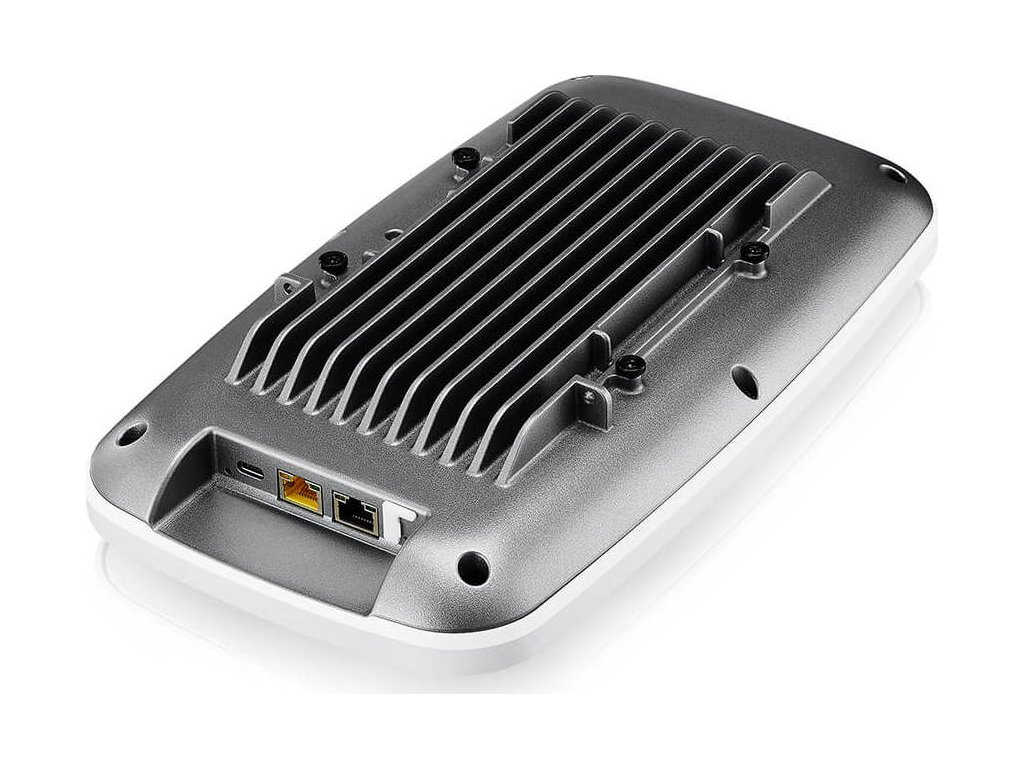

Physical Interfaces

Ethernet port

1 x 1/2.5/5/10Gbps LAN

1 x 1Gbps LAN

Power

PoE (802.3)bt: power draw 41 W

DC input : USB PD 15 VDC 3A (Type C)

PoE modes

IEEE 802.3af: Not supported

IEEE 802.3at: 2.4GHz 2T4R; 5GHz 2T4R; 6GHz 2T4R*3

IEEE 802.3bt: Unrestricted

Environmental Specifications

Operating

Temperature

0°C to 45°C/32°F to 113°F

Humidity

10% to 90% (non-condensing)

Storage

Temperature

-40°C to 70°C/-40°F to 158°F

Humidity

10% to 90% (non-condensing)

Certifications

Radio

FCC Part 15C

FCC Part 15E

ETSI EN 300 328

EN 301 893, LP0002

EMC

FCC Part 15B

EN 301 489-1

EN 301 489-17

EN55022

EN55024

EN61000-3-2/-3

EN60601-1-2

BSMI CNS13438

Safety

Safety EN 60950-1

IEC 60950-1

BSMI CNS14336-1

All specifications are subject to change without notice.

*1. Maximum transmit power is limited by local regulatory settings.

*2 WDS, ZyMesh, Smart Mesh and Industry’s Open Mesh, Easy Mesh are different mesh systems that do not work with one another.

*3 WBE660S with 2T4R configuration can run with All Zyxel PoE+ switch models without any problem. If WBE660S works with other POE+ switch brands, please make sure TX Power is under 15dBm and the uplink speed is lower than 2.5GbE.
